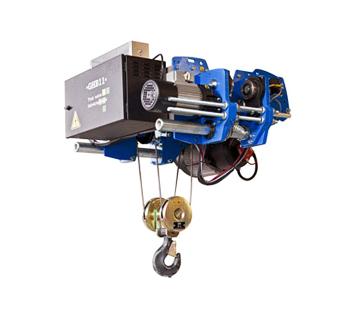

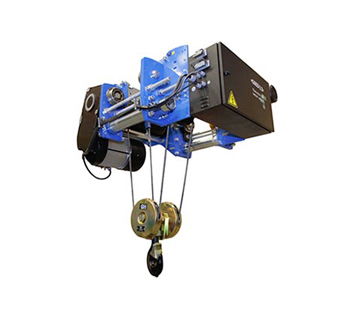

Wire Rope Hoist
New Hoist Generation
|
|
|
The new hoist´s modular design enables much of the structure to be used for assembling the dif ferent hoist configurations, different rope arrangements (4/1, 2/1, 4/2, etc.), drum lengths or installing a second motor.
This design makes GH´s new hoist competitive and quick to manufacture.
|
|
|
Characteristics Of The State-Of-The-Art Hoist
|
|
|
Design
Robust, compact and clean with a modern and technological profile.
|
|
No Counter Weights
Lighter and with the most economic structure.
|
|
Modular Design
Changing just a few of the parts allows the hoist configuration to be transformed.
|
|
Bolted Structure
The maintenance is simpler and avoids the deformation of the welded frame, achieving greater versatility.
|
|

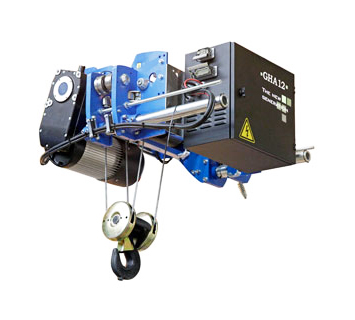

Exterior fairing GHA12, GHB11 and GHD13
With a common plate for the entire range of each generation.
|
|
Compact Tubular Double Girder Concept
More competitive solution than the typical trolley with end carriage on the market. Exclusive to GH.
|
|
Gears Made Of Rectified Cemented Material.
This lengthens the life of the gearbox, manufactured according to ISO 6336. Reduces vibrations and noise of the gearbox.
|
|
Protection Of Travel Gear In Suspended AR
Avoids handling and possible entrapment. Prevents the dripping of grease.
|
|
Four-Gauge Pin Type Load Cell
For load limiter, which makes it possible to know the load spectrum and determine the SWP.
|
|
Steel Cable
With plastic injection and safety factor greater than 5 in all configurations.
|
|
Quick Connectors
Which facilitate maintenance and save assembly time.
|
|
Cabinets with COREBOX
Datalogger and connectivity.
|
|
Top Of The Range Commercial Electrical Components
Schneider, Weidmüller, etc.
|
|
Standar Disation Of Variable Speed Drive
Standardisation of variable speed drive for all movements..
|
|
Increased Safety
By placing the encoder in an elevated position that favours the return of the command information from the drive to the motor. Robust and high-resolution design encoder.
|
|
High-Capacity Braking Resistance
Overload capacity, oversized. High dielectric strength.
|
|
Overspeed For Small Loads
Allows the hoist to go faster if the load is below 25%. With the maximum load it can go at nominal speed. From 25% to 60% maximum overspeed.
|
|
Possibility Of Fitting Regenerative Drive
And the elimination of braking resistors. Energy savings.
|
